There are numerous ways in which we can now enhance the stability of ladders.
SCHEDULE 6
REQUIREMENTS FOR LADDERS
5. A portable ladder shall be prevented from slipping during use by -
a) securing the stiles at or near their upper or lower ends;
b) an effective anti-slip or other effective stability device; or
c) any other arrangement of equivalent effectiveness.
1
2
3
4
5
Please select the product from the list below for more information
SPECIFICATIONS
Ladders
Ladders manufactured from hollow seamless Aluminium extrusions with radiused corners for extra strength. Sizes vary in depth and width according to size of ladder.
Rungs either 24mm or 30mm diameter serrated tube fitted through stiles at a standard rise of 250mm by a special locking method to prevent turning and for increased strength. Ends of ladder stiles fitted with rubber plugs Kitemarked (where indicated) BS 2037 Class 1 Industrial Designed For Heavy Industrial Use
Steps
Manufactured from Aluminium channels fitted with 80/89mm deep treads fitted at a standard rise of 254mm ends fitted with rubber plugs. Rear Cross diagonal braces for extra life. Kitemarked (where indicated) BS 2037 Class 1 Industrial Designed For Heavy Industrial Use
Please select the product from the list below for more information
Single Section Ladders Double Extension LaddersTriple Extension LaddersSurveyors Ladders Combination Ladders Shelf Ladders Double Sided Step Roof LaddersSwingback StepsPlatform Steps Vision 360º Platform B-DEK StepUp PlatformSPECIFICATIONS
Non-conductive material Ladders
Stiles 84 x 30mm Pultruded Channel Heavy Duty Section
Glassfibre Rung 30 x 30mm Pultruded Box Section
Aluminium Alloy Rung 32mm Diameter Round Castellated Rung Rungs Fitted At 250mm Centres
67º Glassfibre Tread Serrated For Grip 67º
Aluminium Tread Serrated For Grip Rear
For a ladder to fully comply and be kitemarked to BS EN 131 the ladder must have a base width greater than the standard width of its stiles (to a max of 1.2mtr) if it is over three metres in extended length. This means the addition of a base bar on our products. due to demand we do not fit base bars as standard so if require a fully Kitemarked product please request this when ordering.
Please select the product from the list below for more information
SPECIFICATIONS
Ladders
Stiles: 72 x 32mm Douglas Fir / Hemlock
Rung: Barrelled shaped American Ash Fit
tings: Steel BZP rust proofed Polyurethane
exterior varnish finished
Manufactured to BS 1129 Class 1 Industrial Designed For Heavy Industrial Use
Steps
Stiles: 72 x 28mm or 32mm Douglas Fir / Hemlock
Treads: 90 x 22mm Douglas Fir / Hemlock
Backleg: Mortise and tennoned for long life 68º
Douglas Fir / Hemlock Tread Serrated For Grip
Platform Steps: Rear Cross Braces Varnished finished
Manufactured to BS 1129 Class 1 Industrial Designed For Heavy Industrial Use
Please select the product from the list below for more information
Materials Used
Steps are manufactured from ERW tube to BS6323 PARTS-ERW1-KM.The
materials used in this range are recyclable. Together with our environmentally-friendly processes and practices we are consciously working towards a
greener future for our customers, our community and ourselves.
Unique Safety Barrier
The Klime-Ezee 5 - 15 and E-Series 5 - 15 Tread steps are immobilised by a patented central fail-safe retractor mechanism which, when operated, performs the dual function of both acting as a braking system and at the same time forming a 'NO ACCESS' barrier across the steps, thus protecting the safety and welfare of your operative when using the equipment. The retractor gate is designed to lock the handle in position and is extremely light and easy to operate. The KE5 & KE6 have 2 x 100mm dia. rear wheels and a single front retractable castor. The KE7-KE15 steps have 2 x 120mm dia. rear wheels and 2 retractable front castors which are lifted from the floor by use of a centrally mounted 'Access Barrier' retractor handle, thus allowing the two large steel feet to impact with the floor to give maximum stability to your operator. The amply sized top platform with kicking flat makes order picking, shelf access or maintenance both comfortable and safe.
Tread Types
We offer two types of tread for our standard range of steps. They are manufactured from steel to BS1449 PART 1 1983 CR4. All treads give maximum grip in any environment.
'M' Tread - Multi-Pattern pierced and raised metal tread.
'P' Tread - PVC Anti-Slip covered metal tread.
Paint Finish
The finishing processes employed are universally applied in strict accordance with the manufacturers' guidelines. Our standard paint finish is applied using a reliable and efficient Electrostatic Paint Process. All products will be painted Pacific Blue as standard or Signal Red if requested. Other colours can be supplied at extra cost.
Step Mobility
All our steps are fitted with rubber-tyred wheels and castors, providing easy control and mobility. Indeed, a force of only 5-10Kg is required to move our steps. Customers will note that this is well below the 25Kg force determined by Health & Safety Executive.

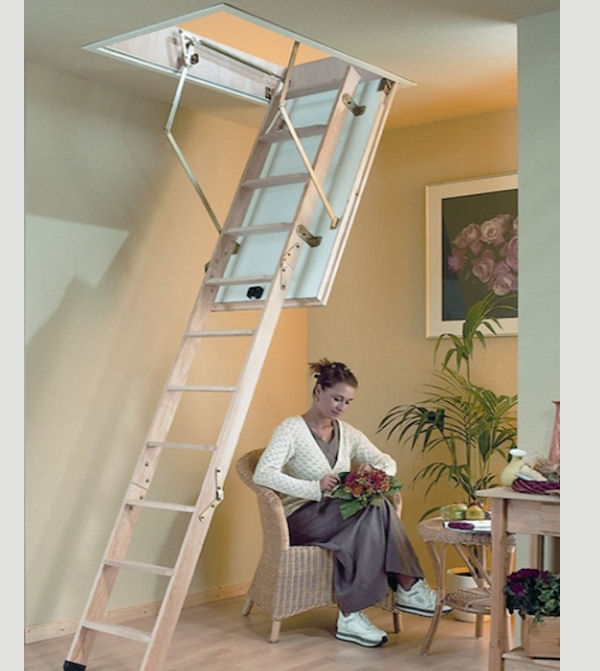

From timber to alloy we are able to supply a varied range of loft lade hatch door so when you open the hatch the ladder is deployed?
- Do you want a fully built timber la
ders to suit most circumstances.
- Do you have space on the loft floor to stow the ladder?
- Do you want it fix to th
- dder and encasement?
- Want something to be able to use on a daily basis?
- No room for a standard staircase?
If you need help with any of the above or just cant find a standard solution then contact us we will try to help you find the answer.
